General Service Gauges

Choice of Mounting Style

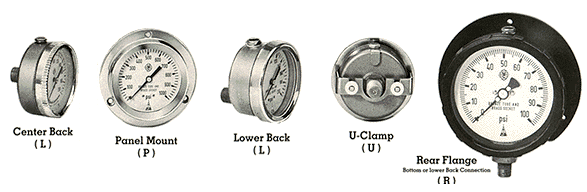

Mounting Styles


Mountings are specified by using the following suffixes as codes:

P

Panel mount/center back connection Model R7

P Panel mount/lower back connection Models J, L, M, N, P, Y, Z
L Center back connection (without panel mount flange) Models U, R7, T
L Lower back connection (without panel mount flange) Models J, L, M, N, P, Y, Z
U Panel Mount/lower back u-clamp Models J, L, M, N, P, Y, Z
U Panel mount/center back u-clamp Models T and U
R Rear flange for wall-mounting  Models J, L, M, N, P, Y, Z
S Solid front/blow-out back (Fillable; not available with back connection) Models N, P
