All-Stainless Steel Gauges

Choice of Mounting Style

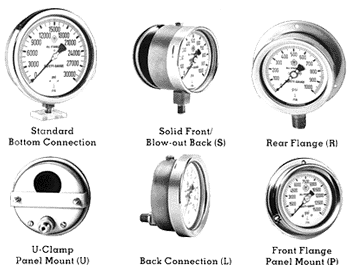

Mounting Styles


Mountings are specified by using the following suffixes as codes:

P

Panel mount/center back connection (Models S and Q) Panel mount/lower back connection (Models A, C, E, G, B, D, F, H, K)

L Center back connection (Models S and Q) or lower back connection without panel mount flange (Models A, C, E, G, B, D, F, H, K)
U U-Clamp for panel mounting (Center back on S and Q)
R Rear flange for wall-mounting (2", 4", and 6" gauges only)
(Models A, C, E, G, B, D, F, H, K)


NOTE: Model K available with center back connection by special order.
