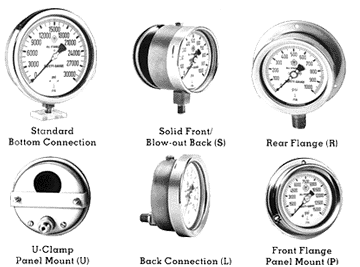

Mounting Styles
Mountings are specified by using the following suffixes as codes: |
| P |
Panel mount/center back connection (Models S
and Q) Panel mount/lower back connection (Models A, C, E, G, B, D, F, H, K) |
| L |
Center back connection (Models S and Q) or
lower back connection without panel mount flange (Models A, C, E, G, B, D, F, H, K) |
| U |
U-Clamp for panel mounting (Center back on S and Q) |
| R |
Rear flange for wall-mounting (2½",
4", and 6" gauges only)
(Models A, C, E, G, B, D, F, H, K) |
|
|
